| Machine Details | Print description of the machine | Ask for information about machine |

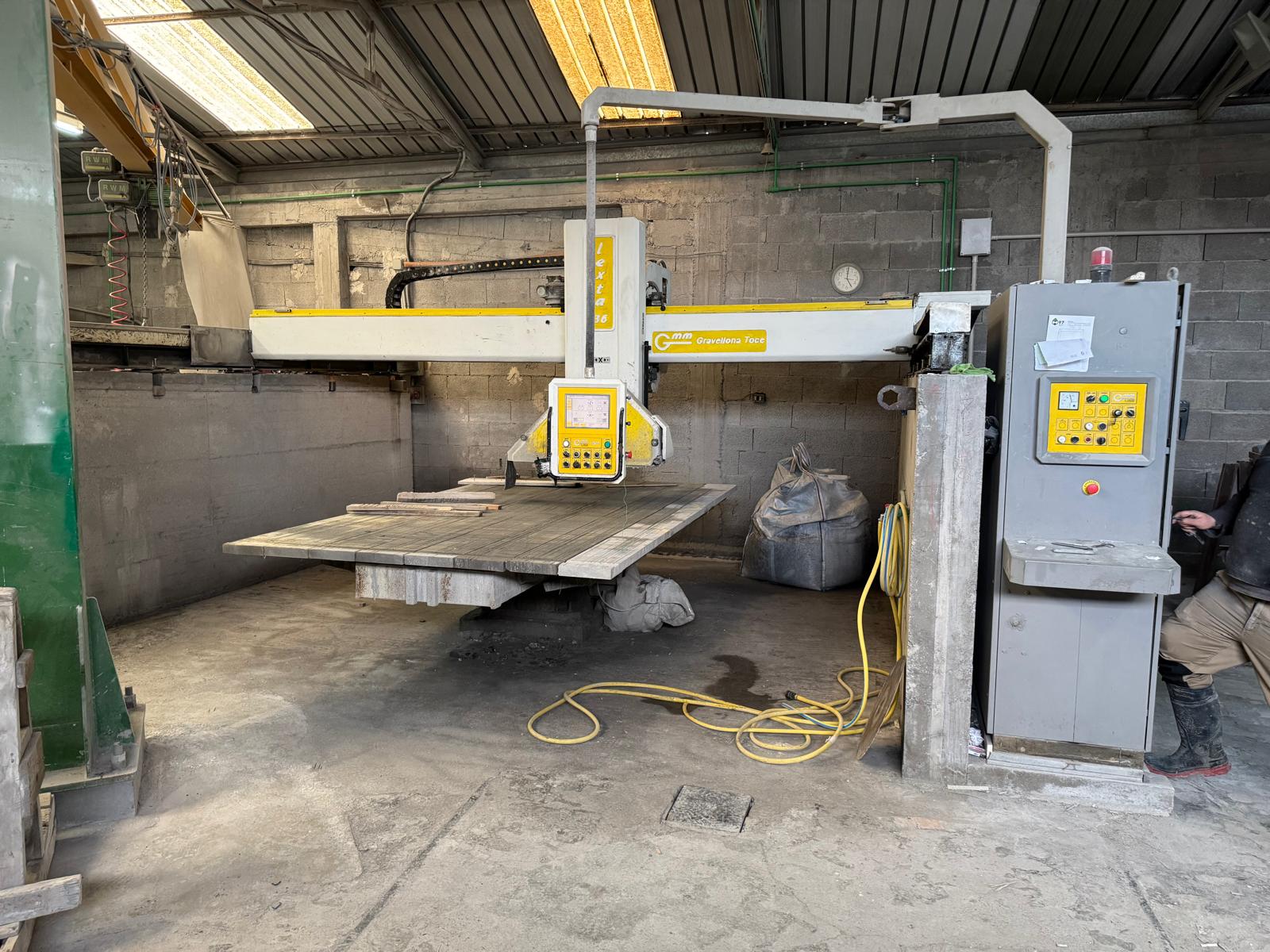

| BRIDGE CUTTER Marble - Granite | ||||
| Ref # | 8631 |
|
||
| Brand | GMM | |||
| Model | LEXTA 36 FULL | |||
| Year | 2004 | |||
| Serial # | ||||
|
Marble | |
Granite | |
|
Agglomerates | |
Ceramic | |
|
Mosaics | |
Cutting | |
|
Polishing | |
Finishing | |
|
Quarrying | |
Movement | |
| Overall Dimensions | ||||||||||
| HP | Length (mm) | 6900 | |
photo (original) | |
brochure | |
electric draw | ||
| KW | 27 | Width (mm) | 5900 | |
photo (catalogue) | |
video | |
user manual | |
| Volts | 380 | Height (mm) | 3000 | |
foundation plan | |
installation manual | |||
| Hz | 50 | Weight (Kg) | 4700 |
structure |
iron | |||||
| PRICE | € 27.750 |
notes |
Useful working size 3600x3500mm, vert.disc diam 825mm, Max depth of cut with max disk 305mm, disc hole diameter 50mm, rpm speed inverter 700 to 2000 rpm, cutting feed speed adjustable 0 to 18m/min supply incl. lathe new touch screen motor HP to be conf. |
| Conditions | Dismantling | Included | |
| Look | Excellent | ||
| Dismantling notes | ex works Italy | ||
| Latest verify date | 12-8-2025 |
All technical data has to be reconfirmed upon customer request before order confirmation.
Any variation of technical data does not justify a confirmed order cancellation.
