| Machine Details | Print description of the machine | Ask for information about machine |

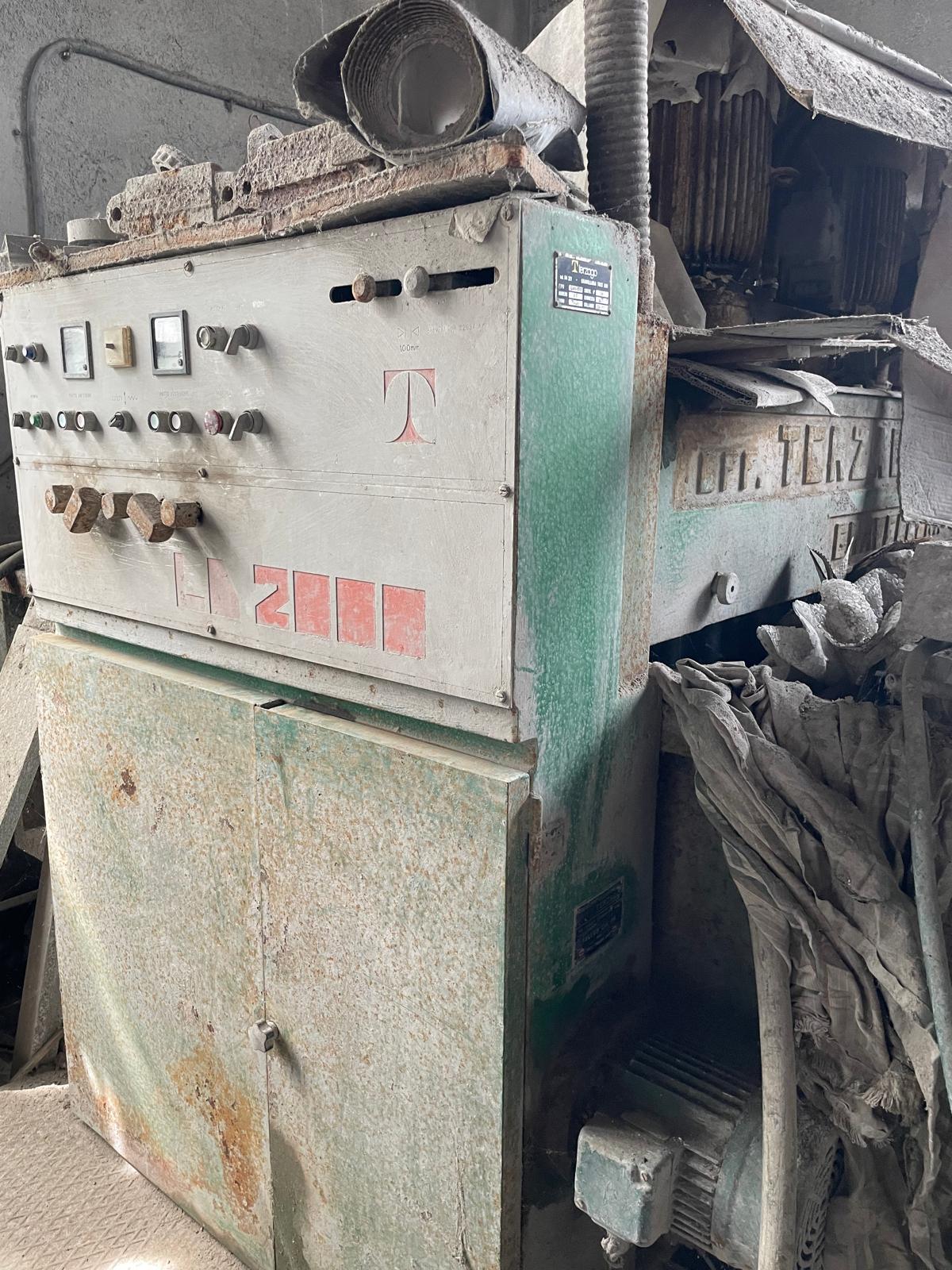

| SLAB BRIDGE POLISHING MACHINE - autom. - from 01 to 03 plates | ||||
| Ref # | 8811 |
|
||
| Brand | TERZAGO | |||
| Model | LD 2000 | |||
| Year | n.a. | |||
| Serial # | ||||
|
Marble | |
Granite | |
|
Agglomerates | |
Ceramic | |
|
Mosaics | |
Cutting | |
|
Polishing | |
Finishing | |
|
Quarrying | |
Movement | |
| Overall Dimensions | ||||||||||
| HP | Length (mm) | 3500 | |
photo (original) | |
brochure | |
electric draw | ||
| KW | Width (mm) | 1500 | |
photo (catalogue) | |
video | |
user manual | ||
| Volts | 380 | Height (mm) | 2500 | |
foundation plan | |
installation manual | |||
| Hz | 50 | Weight (Kg) | 3100 |
structure |
cast-iron | |||||
| PRICE | € 6.300 |
notes |
Useful working width 2000mm,useful work length free,polishing heads n° 2 ,vert stroke of heads 250mm,max distance between heads 400mm,diam of the plates 400mm,HP 15 each spindle,hydr.head press,cast iron build,automatic working syst.water cons.50 lt.min |
| Conditions | Dismantling | Not Included | |
| Look | Good | ||
| Dismantling notes | ex works Italy | ||
| Latest verify date | 23-6-2026 |
All technical data has to be reconfirmed upon customer request before order confirmation.
Any variation of technical data does not justify a confirmed order cancellation.
