| Machine Details | Print description of the machine | Ask for information about machine |

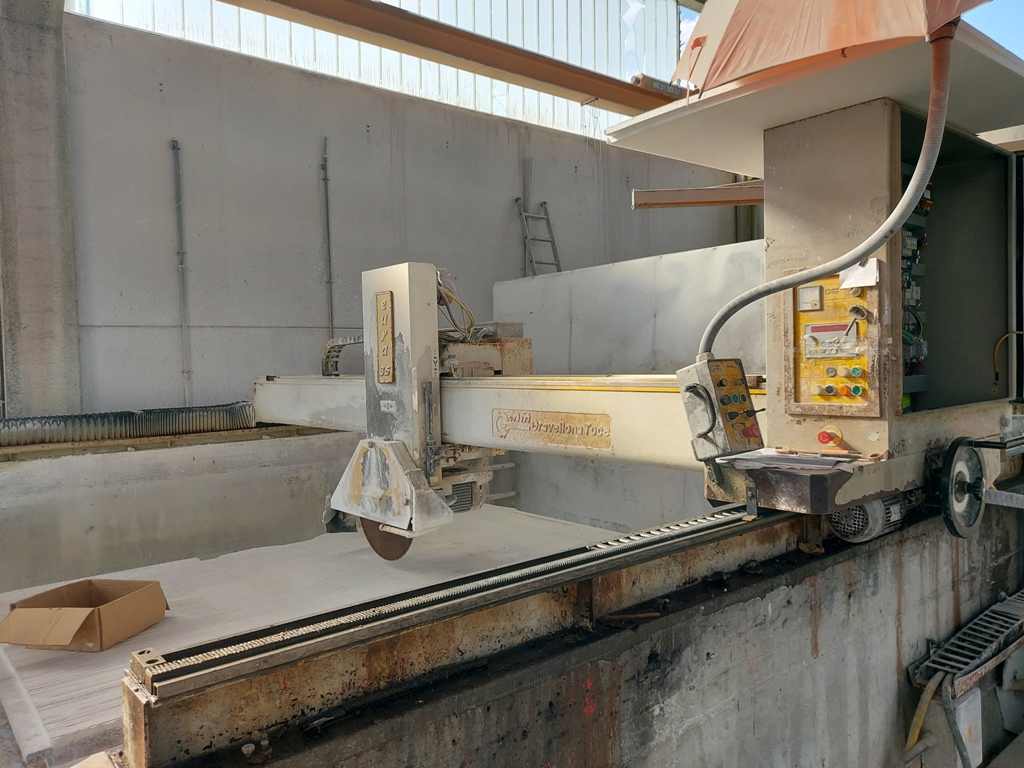

| BRIDGE CUTTER Marble - Granite | ||||
| Ref # | 8825 |
|
||
| Brand | GMM | |||
| Model | EURA 35 | |||
| Year | 2001 | |||
| Serial # | ||||
|
Marble | |
Granite | |
|
Agglomerates | |
Ceramic | |
|
Mosaics | |
Cutting | |
|
Polishing | |
Finishing | |
|
Quarrying | |
Movement | |
| Overall Dimensions | ||||||||||
| HP | 20 | Length (mm) | 5800 | |
photo (original) | |
brochure | |
electric draw | |
| KW | 18 | Width (mm) | 5900 | |
photo (catalogue) | |
video | |
user manual | |
| Volts | 400 | Height (mm) | 2500 | |
foundation plan | |
installation manual | |||
| Hz | 50 | Weight (Kg) | 3400 |
structure |
||||||
| PRICE | € 18.850 |
notes |
Useful work meas 3500 x 3500mm,vertical stroke max 320mm,diam disc max 625,max cutting depth 200mm blade hole diam 50mm,bench meas 3000x1500mm ,spindle rotation speed 1435 rpm, multiple cutting program |
| Conditions | Dismantling | Included | |
| Look | Good | ||
| Dismantling notes | ex works Italy | ||
| Latest verify date | 27-6-2026 |
